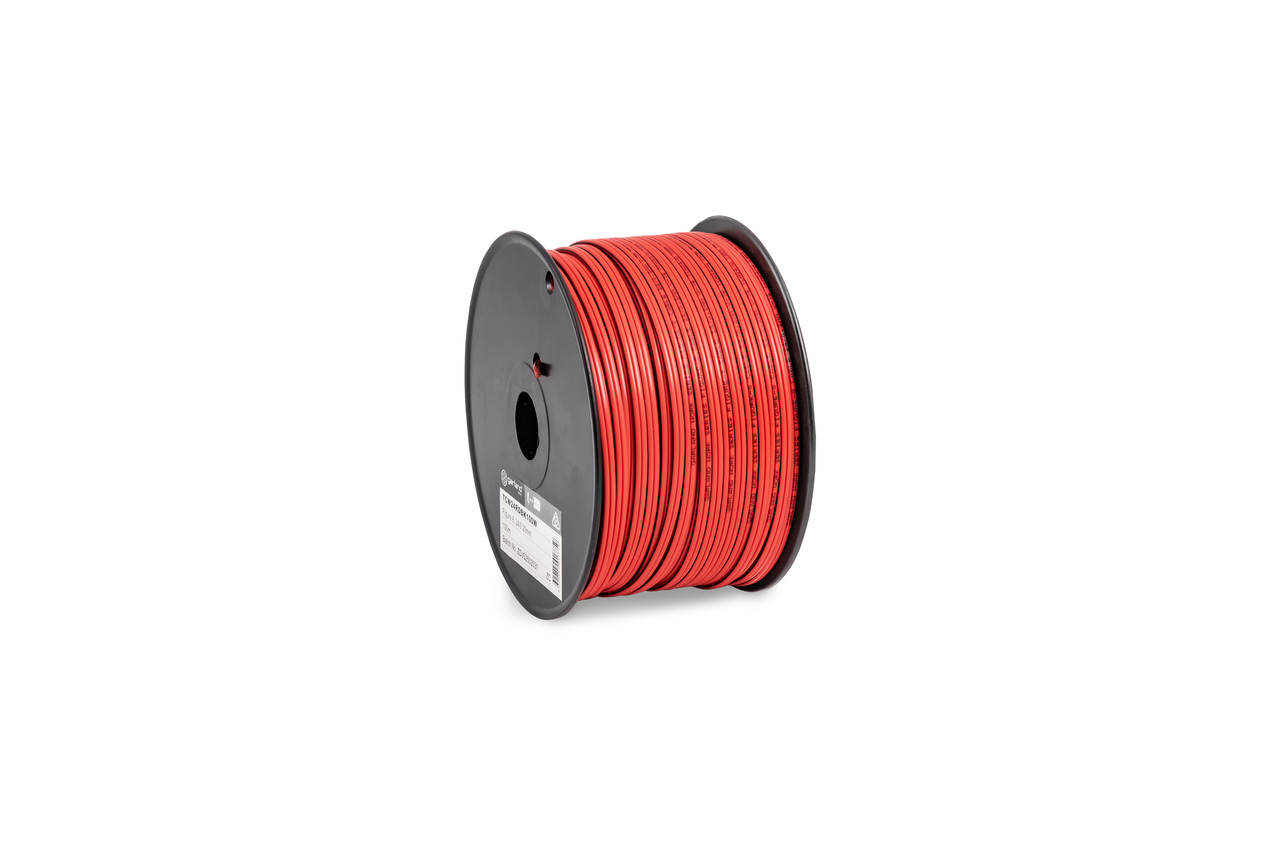

Garland Figure 8 Reel 24/0.2mm PVC | 100M | Red with Black stripe

The Garland TCW24RDBK100W is a 2-core figure 8 security cable using 24 x 0.2mm stranded copper conductors and V-75 PVC insulation. Designed for low-voltage electronic wiring, it’s ideal for alarm systems, sensors, and speakers. The red and black striped jacket allows for easy polarity identification. Supplied on a 100m reel, it delivers reliable, flexible performance in SMB and commercial installations.

Key Features

• 24 x 0.2mm stranded copper conductor for flexible, low-voltage wiring

• 2-core figure 8 construction for clear polarity identification

• V-75 PVC insulation, extra-low voltage (ELV) rated

• Voltage test: 3.0kV AC between conductors

• Operating temperature: -15°C to +70°C

• Compact OD (2.7 x 5.5mm) – easy to route and terminate

• Supplied on 100m reel for convenience and reduced waste

• Complies with AS/NZS 3191 & AS/NZS 3808 standards

Common Use Cases

For IT Managed Service Providers (MSPs):

• Alarm and sensor wiring for client security systems

• Intercom and access control cabling

• Audio and PA system wiring in office or warehouse settings

For Small & Medium Businesses (SMBs):

• Security system cabling for offices, retail, or education sites

• Speaker or PA cabling for background music systems

• Safe and flexible wiring for automation and monitoring devices

For Tradespersons and Installers:

• Easy-strip, flexible cable for fast installations

• Suitable for conduits, wall cavities, and surface runs

• Professional-grade cable for security and low-voltage work
