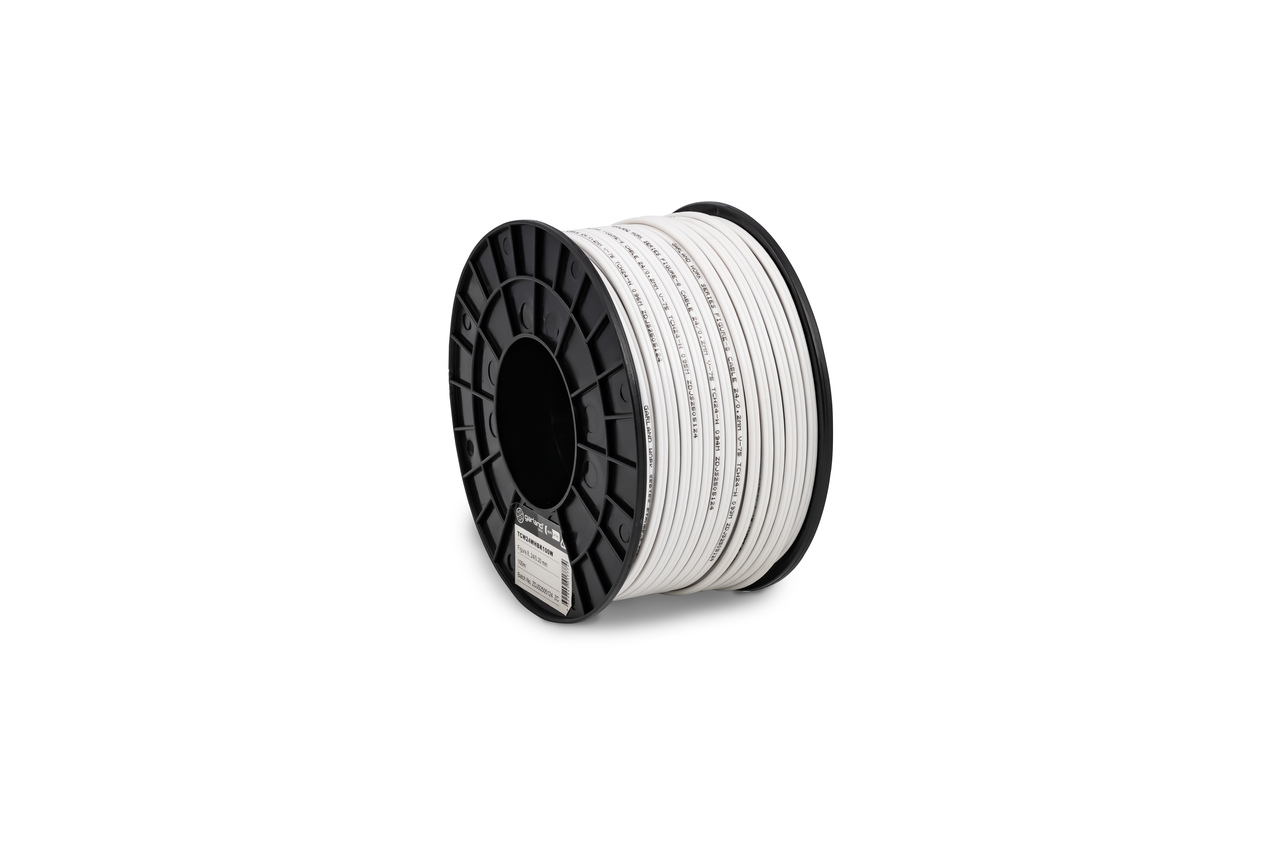

Garland Figure 8 Reel 24/0.2mm PVC | 100M | White with Black stripe

The Garland TCW24WHBK100W is a 2-core figure 8 cable with stranded 24 x 0.2mm PACW conductors and V-75 PVC insulation, designed for low-voltage electronic wiring. Suitable for alarm systems, sensors, intercoms, and extension speakers, it offers reliable performance in commercial and SMB installations. Supplied on a 100m white cable with black stripe, it’s built to Australian standards for flexible, easy installations.

Key Features

• 24 x 0.2mm stranded copper conductor for flexible, low-voltage use

• 2-core figure 8 construction for simple polarity identification

• V-75 PVC insulation rated to ELV (extra-low voltage) applications

• Operating temperature: -15°C to +70°C

• Voltage rating: 3.0kV AC test between conductors

• Compact OD (2.7 x 5.5mm) for easy installation in conduits or walls

• Supplied in 100m reel, ideal for small to medium installations

• Complies with AS/NZS 3191 and AS/NZS 3808 standards

Common Use Cases

For IT Managed Service Providers (MSPs):

• Security alarm and access control cabling for client sites

• Low-voltage cabling for intercoms, door sensors, and small PA systems

• Standardised wiring option across multiple SMB installations

For Small & Medium Businesses (SMBs):

• Security sensor and siren connections in offices or retail stores

• Audio and speaker wiring for meeting rooms or background music

• Structured cabling for automation or monitoring devices

For Tradespersons and Installers:

• Easy-to-strip and flexible figure 8 design

• Suitable for wall cavities, conduits, or surface runs

• Reliable choice for electricians, data, or security contractors
